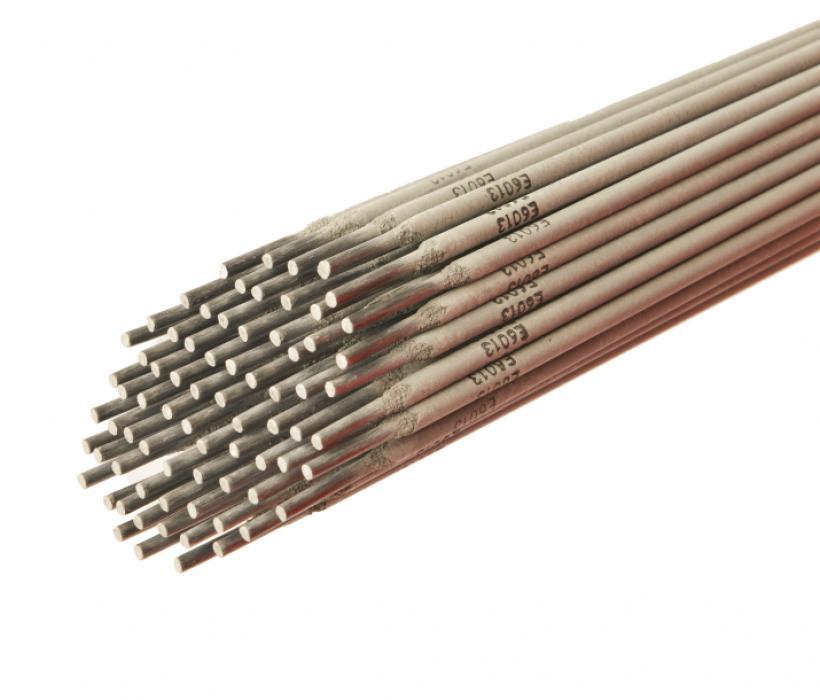

| Name: | AWS E6013 |
|---|---|
| EN 499: | E 42 0 RR 12 |
| ISO 2560: | E 51 3 RR 31 |
| Diameter: | 1.6mm, 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Length: | 300mm, 350mm, 400mm |
| Packing: | 1KG, 2KG, 5KG, 20KG |
Product Description
SFA/AWS A5.1 E6013
Description：It is a rutile type electrode for all positional welding, with good weld appearance on both butt and fillet welds for the good flowing properties of the weld metal. It provides good slag detachability and low spatter. Even at low welding currents, it can still keep stable arc, makes the electrode very suitable for sheet metal welding.
Application: Used to weld low carbon steel structures, particularly suitable for sheet steel and short weld welding.
Welding Position: All
Diameters: 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm.
Packaging: 0.5kg, 1kg, 2kg, 5kg and blister etc.
Typical Mechanical Properties:
Tensile strength(MPa): |
490 |
Yield stress(MPa): |
396 |
Elongation (%): |
26 |
Impact values(≥47J/0℃): |
82 |
Typical Chemical Properties:
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
V |
0.08 |
0.43 |
0.026 |
0.021 |
0.21 |
0.04 |
0.011 |
0.007 |
0.009 |
Welding Current: (AC/DC+)
Diameter(mm) |
2.5 |
3.2 |
4.0 |
5.0 |
|
Current/A |
F/H |
60-90 |
80-130 |
150-190 |
180-250 |
Current/A |
V/OH |
50-80 |
80-110 |
130-170 |
-- |
Note: No need to bake before using, but please bake 30-60 minutes in 150℃ if the electrodes is damp.
